drill supports

Drill supports

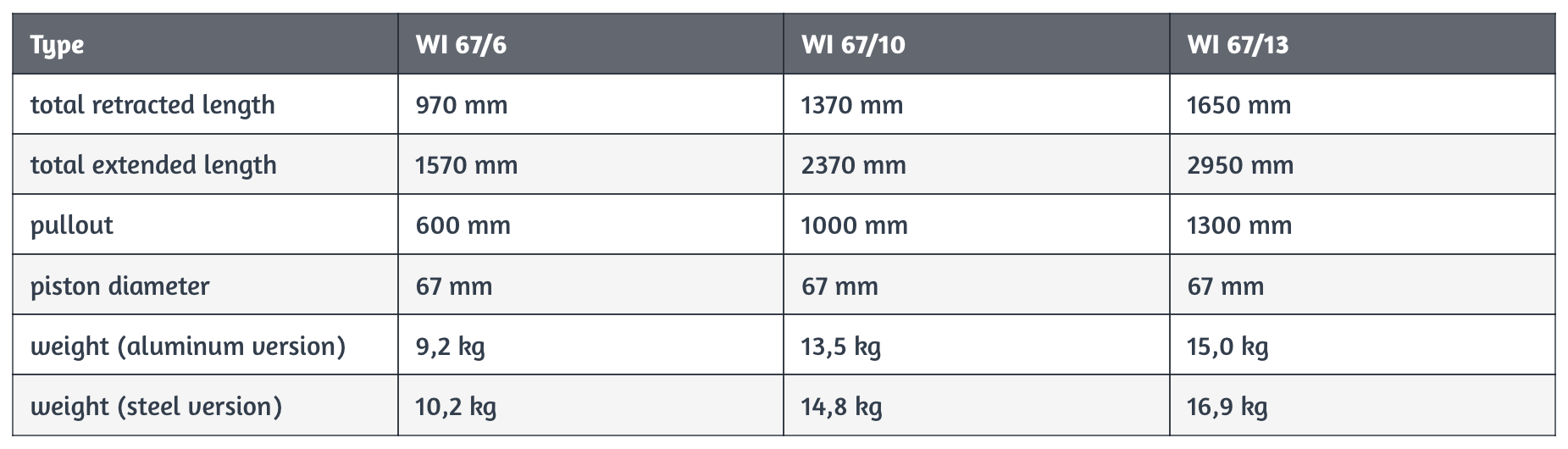

Type	WI 67/6	WI 67/10	WI 67/13
total retracted length	970 mm	1370 mm	1650 mm
total extended length	1570 mm	2370 mm	2950 mm
pullout	600 mm	1000 mm	1300 mm
piston diameter	67 mm	67 mm	67 mm
weight (aluminum version)	9,2 kg	13,5 kg	15,0 kg
weight (steel version)	10,2 kg	14,8 kg	16,9 kg

Special variants on request!
