Insertion tools
Shank size: without

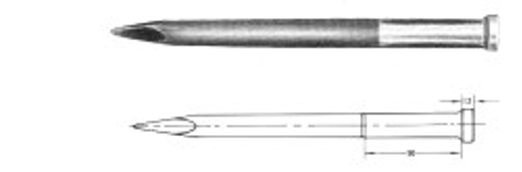

pointed chisel

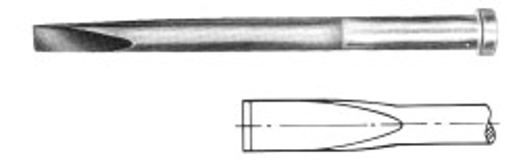

flat chisel
| Type (without shank) | Length in mm |
|---|---|
| pointed chisel | 350, 450, 600 |
| flat chisel | 350 |
Other lengths and versions on request!
Shank size: Rd. 25 x 75 mm

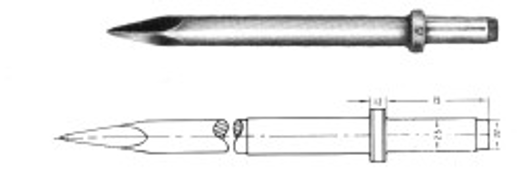

pointed chisel
pointed chisel with a spherical tip
flat chisel
shear chisel

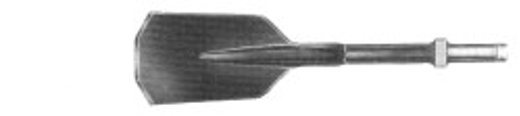

flat spade
concrete blasting device
| Type (shank size Rd. 25 x 75 mm) | Length in mm |
|---|---|
| pointed chisel | 350, 450, 600, 800, 1000, 1500, 2000, 2500, 3000, 3500, 4000, 5000 |
| pointed iron with a spherical tip | Upon request! |
| flat chisel | 350, 450, 600, 800, 1000, 1500, 2500, 3000, 3500, 4000, 5000 |
| shear chisel | Upon request! |
| flat spade with square collar, blade width 120 mm, surface to blade | 400 |
| concrete blasting device, drill hole diameter 32 mm, 3 parts | 320 |
Other lengths and versions on request!
Shank size: S 22 x 82.5 mm
pointed chisel
flat chisel
flat spade
grave spade
| Type (shank size S 22 x 82.5 mm) | Length in mm |
|---|---|
| pointed chisel | 380, 450, 600, 800, 1000, 1500, 2000, 2500, 3000 |
| flat chisel | 380, 450, 600, 1000, 1500, 2000, 2500, 3000 |
| flat spade, blade width 120 mm, surface to the blade | 400 |
| grave spade, blade width 75 mm, surface to the blade | 400 |
Other lengths and versions on request!
Shank size: S 25 x 108 mm
pointed chisel

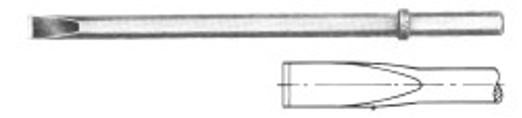

flat chisel

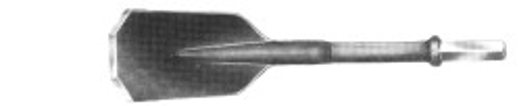

flat spade, tip to blade

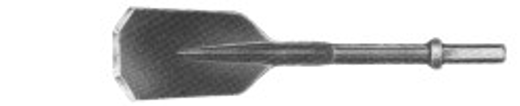

flat spade, face to the blade
digging spade, tip to blade
grave spade, surface to the leaf
| Type (shank size S 25 x 108 mm) | Length in mm |
|---|---|
| pointed chisel | 380, 450, 800, 1000 |
| flat chisel, Blattbreite 28 mm | 380, 450, 800, 1000 |
| flat spade, blade width 120 mm, point to blade (standard) | 400 |
| flat spade, blade width 120 mm, surface to blade (optional) | 400 |
| grave spade, blade width 75 mm, point to blade (standard) | 400 |
| grave spade, blade width 75 mm, surface to the blade (optional) | 400 |
Other lengths and versions on request!
Shank size: S 32 x 160 mm or S 32 x 152 mm

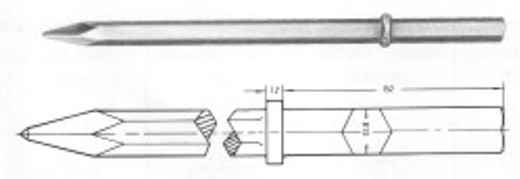

pointed chisel
flat chisel

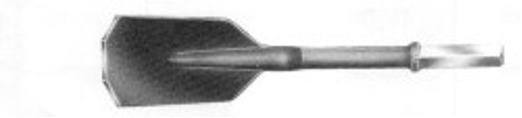

flat spade, tip to blade

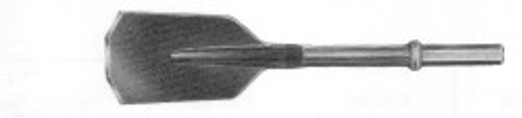

flat spade, face to the blade
digging spade, tip to blade
grave spade, surface to the leaf
| Type (shank size S 32 x 160 mm or S 32 x 152 mm) | Length in mm |
|---|---|
| pointed chisel | 400, 450 |
| flat chisel, Blattbreite 32 mm | 400, 450 |
| flat spade, blade width 125 mm, point to blade (standard) | 350 |
| flat spade, blade width 125 mm, surface to the blade (optional) | 350 |
| grave spade, blade width 75 mm, point to blade (standard) | 400 |
| grave spade, blade width 75 mm, surface to the blade (optional) | 400 |
Other lengths and versions on request!
